A6 JUNG Hospi-Shuttle Slide-out

Description

A6 Jung Hospi Shuttle designed and used by professional cycling team

Upper level
- Slide-out on both sides of the gooseneck
- Fully equipped kitchen including oven, microwave, fridge-freezer, dishwasher, induction hob, sink and plenty of storage space, including lounge area with L-shaped sofa in high-quality saddle leather, dining table, TV wall including speakers and air conditioning with heating and cooling function
- Extensive lounge/office solution in the slide-out with conference table on the right-hand side, including fully upholstered chairs in high-quality leather and a lounge area on the left-hand side, including a sofa in high-quality saddle leather, stools and lounge tables, and air conditioning with heating and cooling function. TV wall including speakers on the front

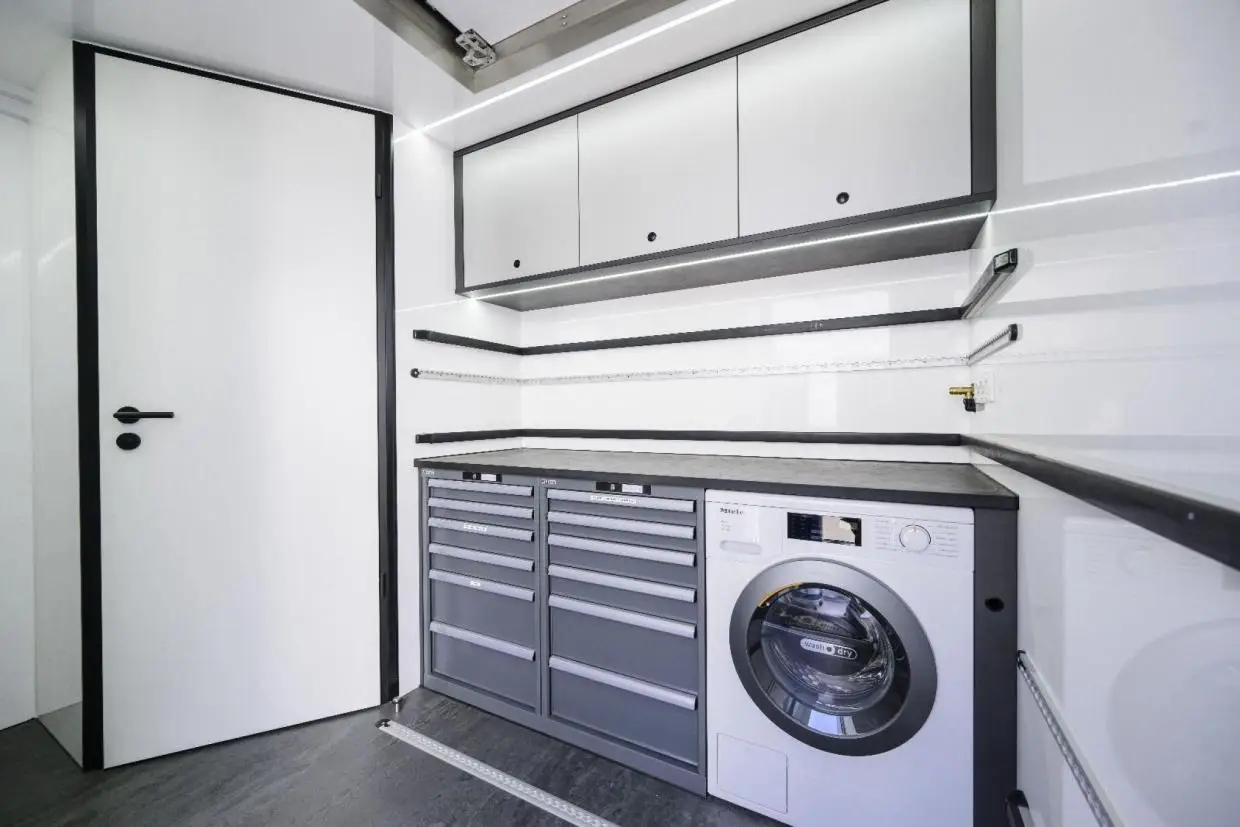

- High-quality work area in the rear equipped with:
Workbench including 2 Lista cabinets and 3 wall cabinets
Compressed air connection (integrated Hydrovane compressor 400 V)
2 cabinets, each with 2 hinged doors
Access hatch to the roof including telescopic ladder
WC including toilet cassette
Air conditioning with heating and cooling function
The upper level can be accessed via a large pull-out platform and integrated stairs.

Lower level
High storage boxes 1,150 mm high for transporting equipment

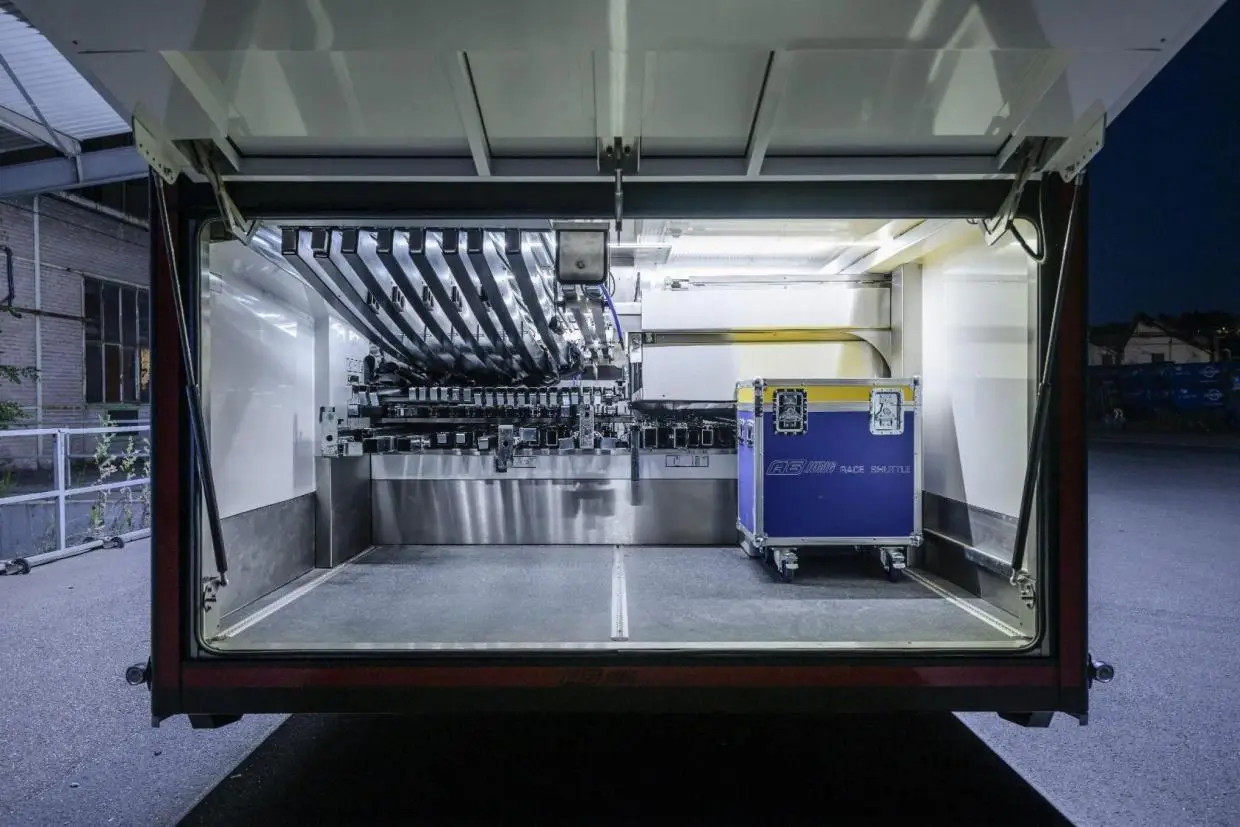

Large tailgate in the rear with large storage space including tent pole holder
Additional equipment
LED lighting on both sides and at the rear
Tent holder including side wall feed-throughs for tent (power and air)
LTE antenna
D+ charging cable on the trailer
Stegmaier tent including front and rear extensions
and much more.

Technical data
Permissible total weight: 28,000 kg
Axle loads: 18,000 kg
Unladen weight: 17,340 kg
Axles: BPW twin tyres
Tyres: 235/75 R 17.5 Michelin
Tail lift: none

Dimensions
External length: approx. 14,100 mm
External width: approx. 2,550 mm
External height: approx. 4,000 mm
Total length: approx. 13,555 mm
Low bed length: approx. 9,600 mm
Portal height: approx. 2,440 mm
Clear height at top: approx. 2,150 mm
Clear height of storage boxes: approx. 1,150 mm
Loading area height: approx. 960 mm
Saddle height: approx. 1,130 mm
